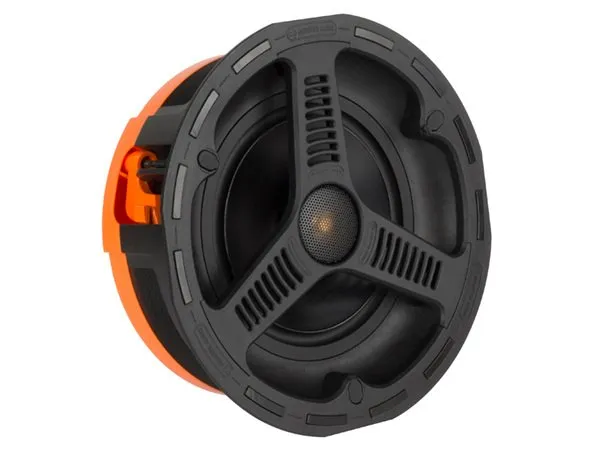

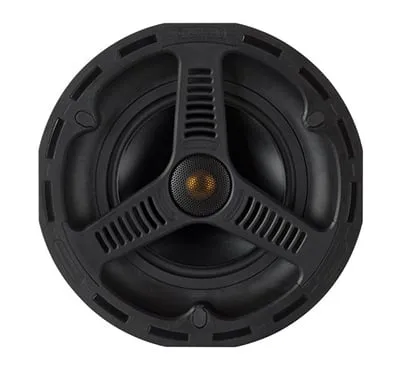

Developed using all C-CAM driver systems derived from our critically acclaimed hi-fi speakers, the AWC265 comprises a stylish two-way 6 1/2” C-CAM bass driver.
Technology
- Quick and easy installation
- High Performance C-CAM bass and high frequency drivers

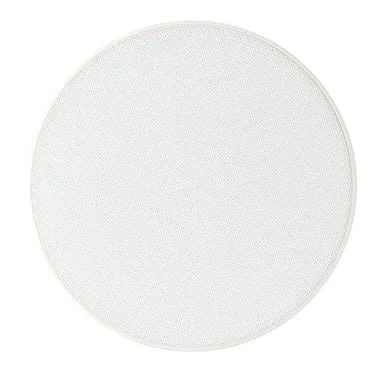

- Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
- Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
- IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
- Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
- EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
- Gold plated push terminals with silicon cover
- Stainless fixing screws with Silicone covers
- Tweeter level attenuation (internal) – set prior to installation
- Applications: pool rooms, bathrooms, marine deck, universal outdoor installation
Frequency Response
60 Hz — 30 kHz
Sensitivity (1W@1M)
88 dB
Nominal Impedance
8 ohms
Maximum SPL
105.8 dBA
Power Handling (RMS)
60 W
Recommended Amplifier Requirements
20 — 60 W
Drivers
6.5" C-CAM cone bass driver
1" C-CAM Gold Dome tweeter (fixed angle)
Controls
HF Level Switch ( 3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Adjustment Controls
2 x (1 pair) Gold plated push style terminal
Overall Diameter (Including Grille)
250 mm (913/16")
Overall Depth (Including Grille)
93.5 mm (31/2")
Cut-Out Hole Diameter
211 mm (81/4")
Mounting Depth
88 mm (31/2")
Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")
Fixing Type
3 position Tri-Grip dog leg fixings
Construction Material
Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant, RoHS2 Compliant)
Grille
SS430 Stainless Steel
Magnets
Samarium Cobalt
Operating Temperature Range
-34° to 79° C -29° to 174° F
Weight
2.04 kg (4 lb 8 oz)
Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)
Back Box
CCBOX-R | CMBOX-R
